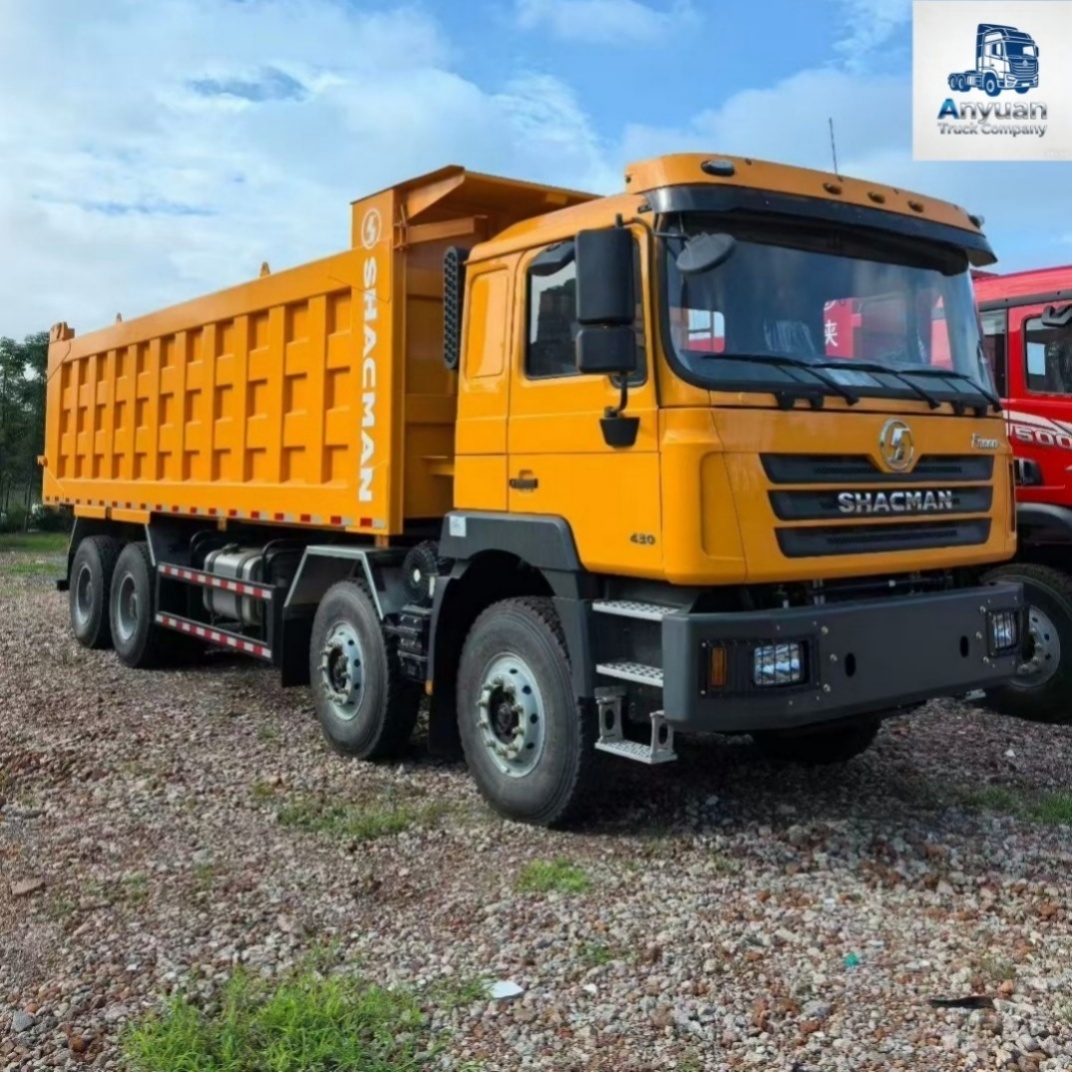

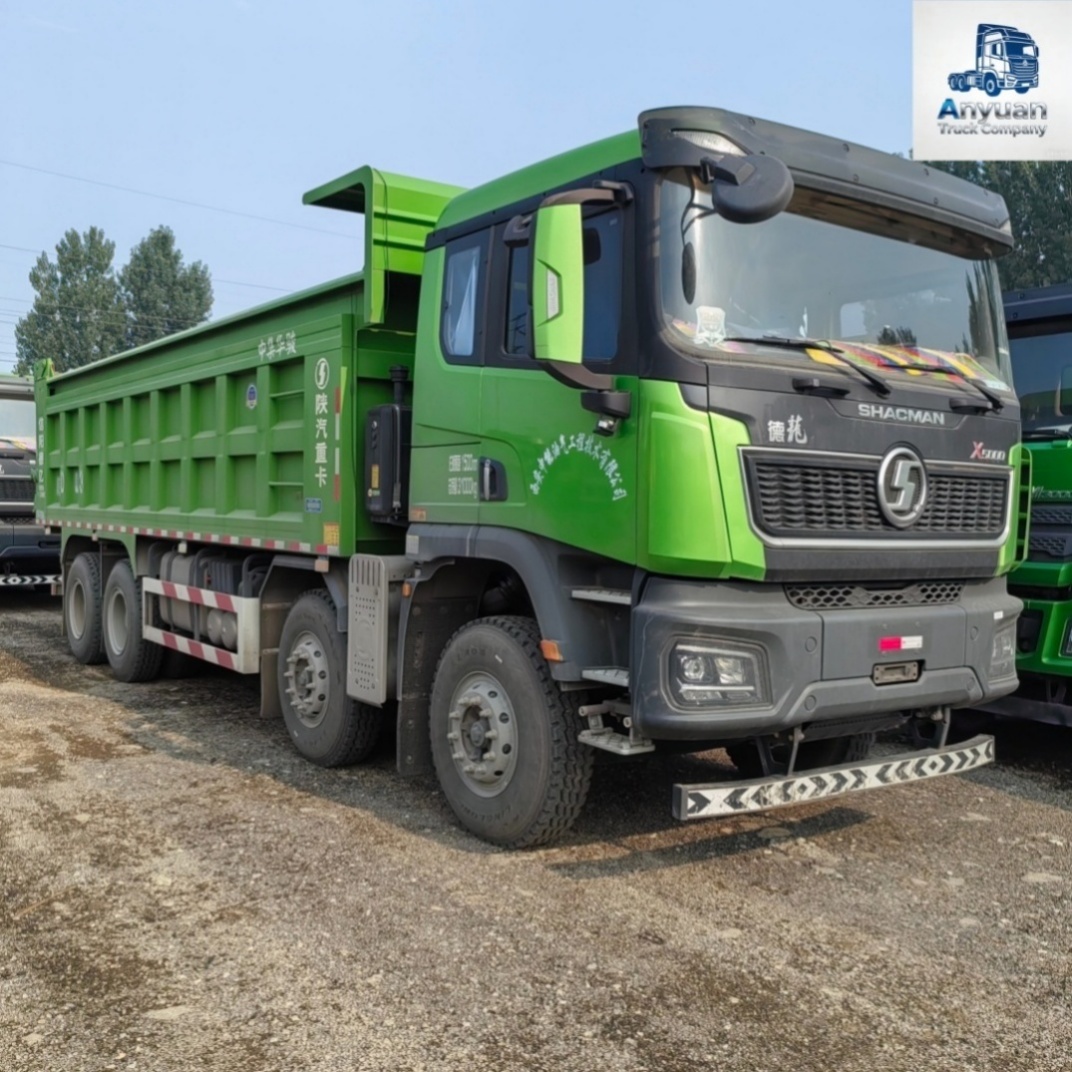

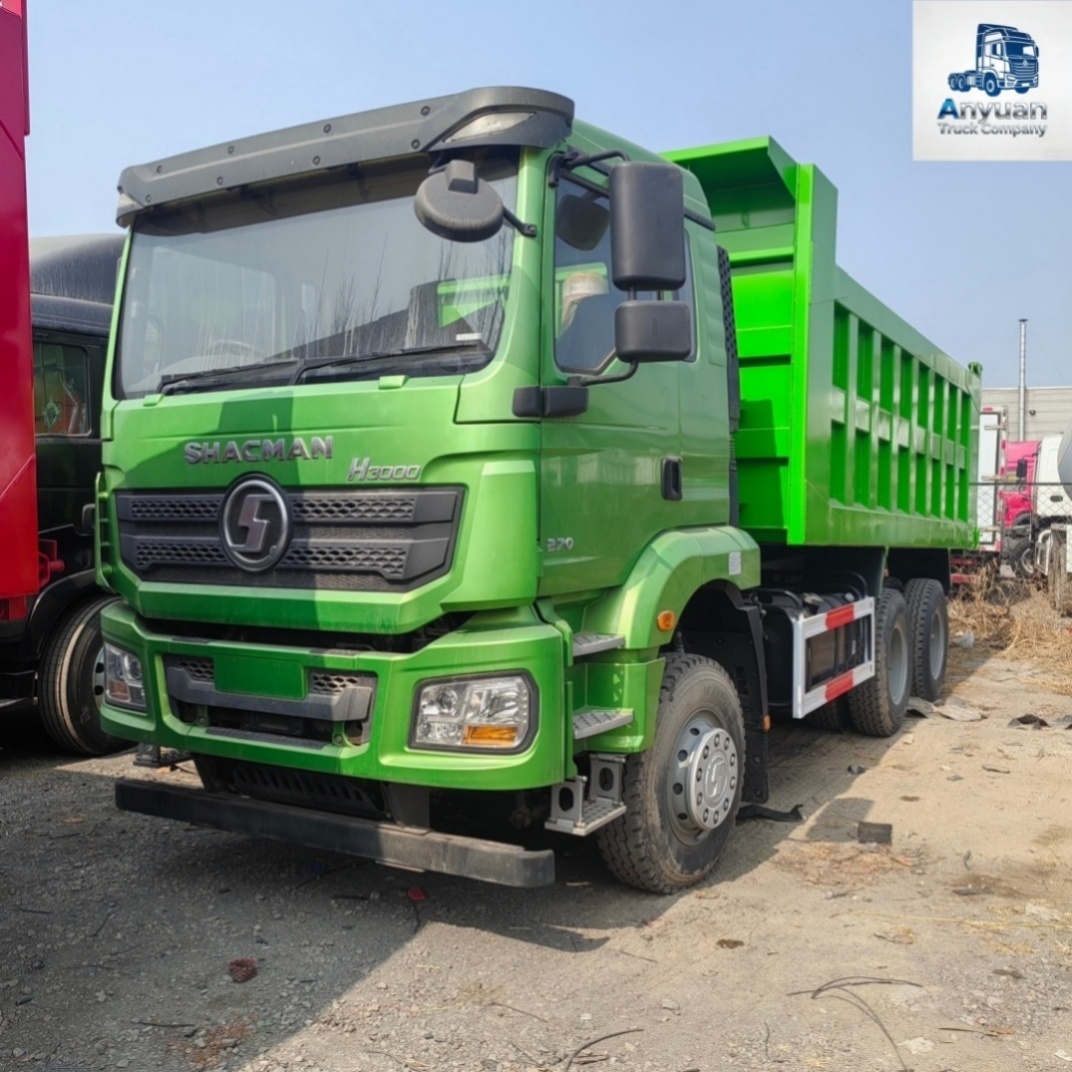

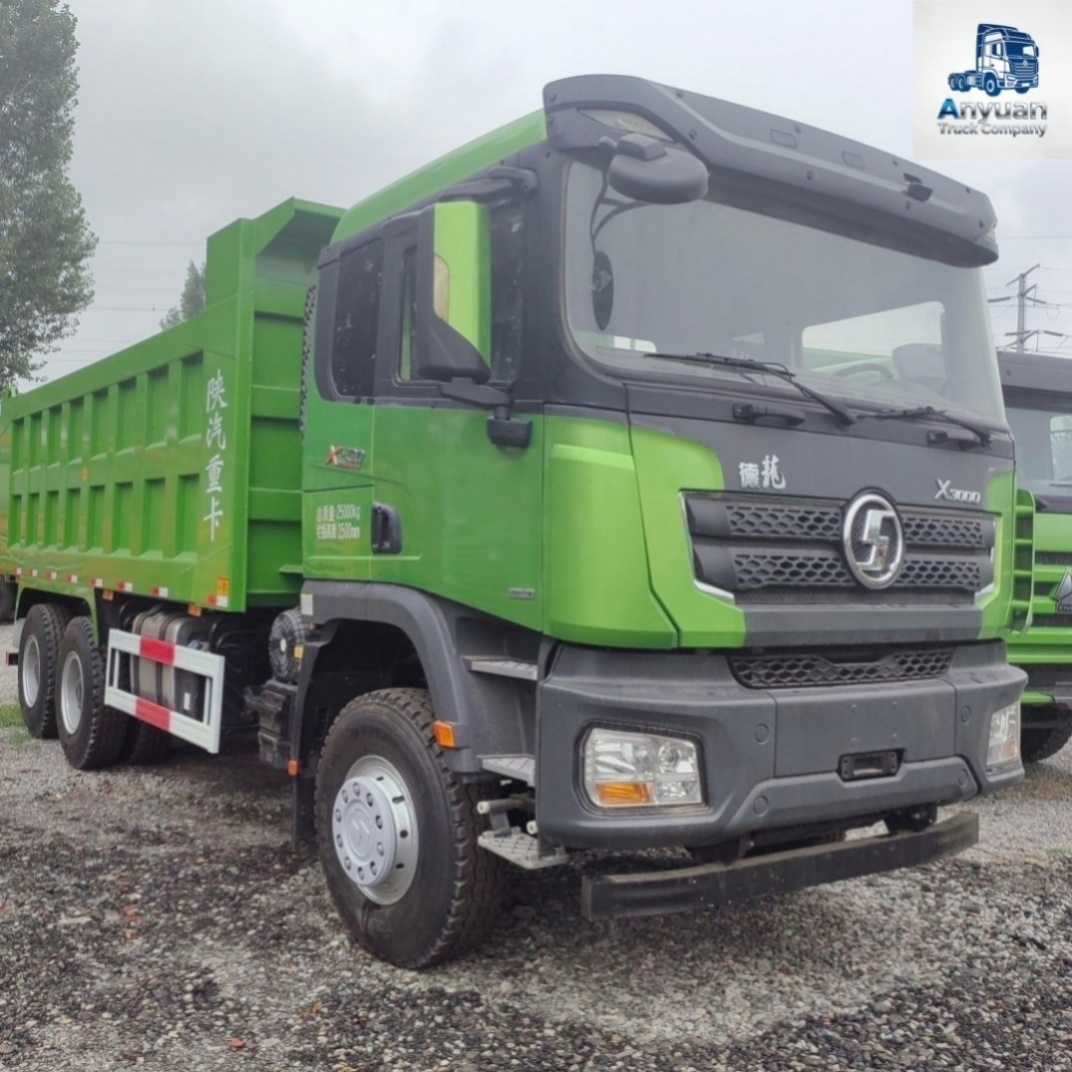

SHACMAN Dump Truck

Usage Scenario

Engineering construction, Logistics transportation

Product Description

MODEL		SX32556T404
Driver position		Left Hand
Driving type		6*4
Wheelbase/(mm)		3975+1400
Max. Speed/(km/h)		75km/h
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Emission Standard	EURO II
	Rated output power/（PS）	279KW/380HP
	Displacement(L)	9.726L
Transmission	Brand	FAST
	Model	12JSD200T-B–QH50
Front axle	Brand	HANDE
	Model	MAN 9.5T
Rear axle	Brand	HANDE
	Model	16T MAN double reduction driving axle. Speed ratio: 5.92
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850×300(8+7)
Suspension		Front and rear multi-leaf spring four main flims+four horse riding
Fuel tank		400L Aluminum alloy
Tire		12.00R20
Brakes		Running brake: Dual circuit compressed air brake
		Parking brake: Air discharging with spring control
		Auxiliary brake: Engine exhaust brake
Cabin		X3000 medium length flat top cab without top air deflector, air main seat, four point hydraulic suspension, electric heated rearview mirror, electronic automatic temperature control air conditioning, electric window shaking machine, manual flipping, metal bumper, three-level boarding pedal, central locking, oil bath air filter, ordinary exhaust, water tank protection grille, tail light protection grille, 165Ah maintenance-free battery, SHACMAN logo, all Russian logo, front headlight protection grille, iron air storage cylinder, stainless steel wheel rim decoration cover, reverse buzzer, 2kg fire extinguisher, parking wedge, telescopic shaft control, daytime running lights
Upbody		580023001700（mm） Bottom 8 sides 6
